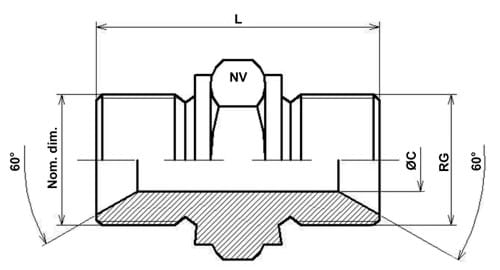

Doppelnippel, 60 Grad x 60 Grad, Edelstahl AISI 316

Doppelnippel mit 60-Grad-Konus an beiden Enden.

Hergestellt aus Edelstahl AISI 316.

Druck: 10 bar.

Datenblatt herunterladen

Warennummer	Nominal dim. Zoll	Verbindung RG	Länge L mm.	Schlüsselweite NV mm.	C Dm. mm.	Basiseinheit
0492309020	1/8"	1/8"	25,0	14,0	5,0	STL
0492309060	1/4"	1/4"	32,0	17,0	6,0	Stck.
0492309080	3/8"	3/8"	35,0	22,0	8,0	Stck.
0492309100	1/2"	1/2"	43,0	27,0	11,0	Stck.
0492309115	5/8"	5/8"	45,0	30,0	14,0	Stck.
0492309130	3/4"	3/4"	45,0	32,0	16,0	Stck.
0492309150	1"	1"	54	41,0	22,0	Stck.
0492309170	1 1/4"	1 1/4"	58,0	50,0	28,0	Stck.
0492309190	1 1/2"	1 1/2"	62	55,0	33,0	Stck.
0492309230	2"	2"	71,0	65,0	46,0	Stck.
