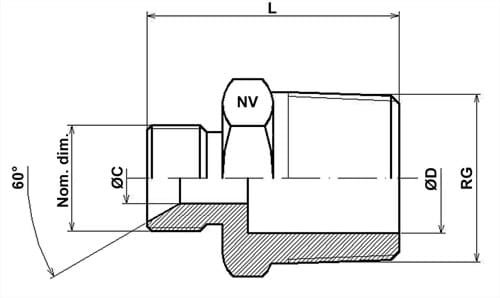

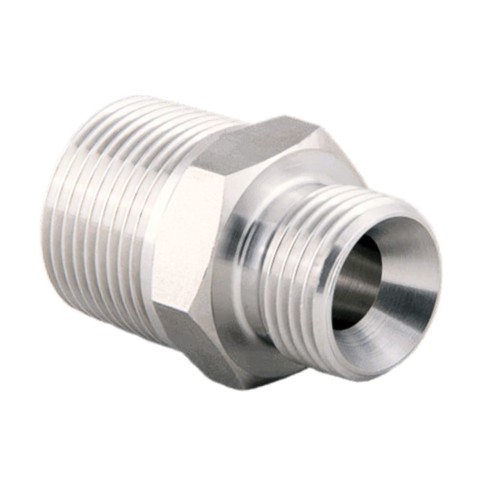

Reduziernippel, Sechskant, 60 Grad an einem Ende, BSPT, Edelstahl AISI 316

Doppelnippel, reduziert mit 60 Grad Konus an einem Ende und Nippel, BSPT-Gewinde am anderen Ende.

Hergestellt aus Edelstahl AISI 316.

Druck: 10 bar.

Warennummer Nominal dim.
Zoll
Verbindung
RG
Länge L
mm.
Schlüsselweite NV
mm.
C Dm.
mm.
D Dia.
mm.
Basiseinheit
0492339060
1/8"
1/4"
28,5
17,0
3,5
8,0
Stck.
0492339080
1/4"
3/8"
031,0
19,0
6,0
06,0
Stck.
0492339100
1/4"
1/2"
37,5
22,0
5,0
6,0
Stck.
0492339101
3/8"
1/2"
38,5
22,0
8,0
8,0
Stck.
0492339130
3/8"
3/4"
40,0
27,0
8,0
17,5
Stck.
0492339131
1/2"
3/4"
42,0
27,0
11,0
17,5
Stck.
0492339150
1/2"
1"
47
36,0
11,0
22,0
Stck.
0492339151
3/4"
1"
49,0
36,0
17,5
022,0
Stck.
0492339170
1"
1 1/4"
55,0
46,0
22,0
26,0
Stck.
0492339190
1 1/4"
1 1/2"
57,0
50,0
26,0
32,0
Stck.
0492339230
1 1/2"
2"
66,0
65,0
32,0
46,0
Stck.
