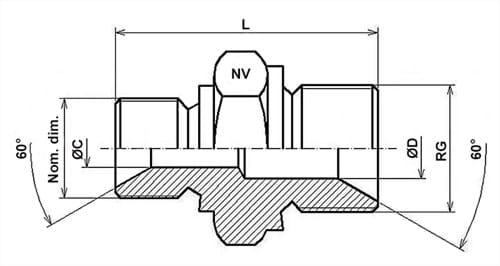

Reduziernippel, Sechskant, 60 x 60 Grad, Edelstahl AISI 316

Doppelnippel, reduziert mit 60 x 60 Grad Konus.

Hergestellt aus Edelstahl AISI 316.

Druck: 10 bar.

Datenblatt herunterladen

Warennummer	Nominal dim. Zoll	Verbindung RG	Länge L mm.	Schlüsselweite NV mm.	C Dm. mm.	D Dia. mm.	Basiseinheit
0492319060	1/4"	1/8"	28,0	19,0	3,5	4,7	Stck.
0492319080	3/8"	1/4"	34,5	22,0	5,0	8,0	Stck.
0492319081	3/8"	1/8"	30,5	22,0	3,5	8,0	Stck.
0492319100	1/2"	3/8"	40,0	27,0	8,0	11,0	Stck.
0492319101	1/2"	1/4"	38,5	27,0	5,0	11,0	Stck.
0492319130	3/4"	1/2"	44,0	32,0	11,0	16,0	Stck.
0492319131	3/4"	3/8"	41,0	32,0	8,0	16,0	Stck.
0492319132	3/4"	1/4"	39,5	32,0	4,7	16,7	Stck.
0492319150	1"	3/4"	50,5	41,0	16,0	22,0	Stck.
0492319151	1"	1/2"	49,5	41,0	11,0	22,0	Stck.
0492319170	1 1/4"	1"	56,0	50,0	22,0	28,0	Stck.
Warennummer	Nominal dim. Zoll	Verbindung RG	Länge L mm.	Schlüsselweite NV mm.	C Dm. mm.	D Dia. mm.	Basiseinheit
0492319171	1 1/4"	3/4"	52,5	50,0	16,0	28,0	Stck.
0492319190	1 1/2"	1 1/4"	61,0	55,0	28,0	33,0	Stck.
0492319191	1 1/2"	1"	59,0	55,0	22,0	33,0	Stck.
0492319230	2"	1 1/2"	65,5	65,0	33,0	45,0	Stck.
0492319231	2"	1 1/4"	64,0	65,0	28,0	45,0	Stck.
