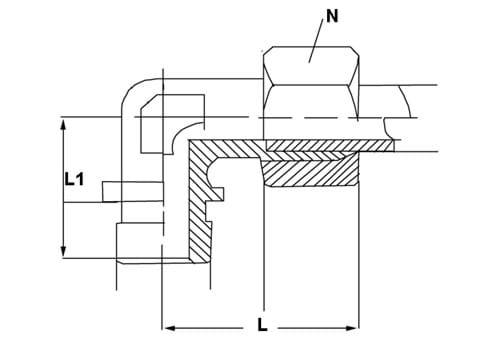

Winkelsteckverschraubung, Außengewinde, Edelstahl AISI 316

Hergestellt aus Edelstahl AISI 316.

Arbeitsdruck bei +20°C, 250 bar für 6-15 mm, 160 bar für 18-22 mm.

Warennummer Nominal dim.
Zoll
Rührenabmess. 1
mm.
Einbaumaße L
mm.
Einbaumaße L1
mm.
Schlüsselweite
mm.
Arbeitsdruck
bar
Nettogewicht
kg.
Basiseinheit
0100629059
1/4"
6,0
29,0
26,0
14,0
315
0
Stck.
0100629060
1/4"
8,0
29,0
26,0
17,0
0,0
Stck.
0100629061
1/4"
10
27
30
19
0
Stck.
0100629062
1/4"
12,0
32,0
28,0
22,0
0,0
Stck.
0100629080
3/8"
8,0
34,0
28,0
17,0
315,0
0
Stck.
0100629081
3/8"
10,0
32,0
28,0
19,0
315,0
0
Stck.
0100629082
3/8"
12,0
32,0
28,0
22,0
0,0
Stck.
0100629083
3/8"
15,0
36,0
34,0
27,0
315,0
0,0
Stck.
0100629100
1/2"
8,0
0
0
0
315,0
0
Stck.
0100629101
1/2"
10,0
0
0
0
315,0
0,0
Stck.
0100629102
1/2"
12,0
38,0
34,0
22,0
0,0
Stck.
Warennummer Nominal dim.
Zoll
Rührenabmess. 1
mm.
Einbaumaße L
mm.
Einbaumaße L1
mm.
Schlüsselweite
mm.
Arbeitsdruck
bar
Nettogewicht
kg.
Basiseinheit
0100629104
1/2"
15,0
36,0
34,0
27,0
0,0
Stck.
0100629105
1/2"
18,0
40,0
36,0
32,0
0,0
Stck.
0100629130
3/4"
22,0
44,0
42,0
36,0
160,0
0
Stck.
0100629150
1"
28,0
47,0
48,0
41,0
160,0
0
Stck.
0100629170
1 1/4"
35,0
56,0
54,0
50,0
160,0
0
Stck.
0100629190
1 1/2"
42,0
63,0
61,0
60,0
160,0
0
Stck.
