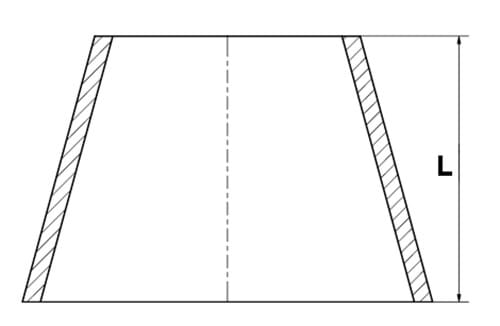

Reduzierung - konzentrisch, DIN

Innen gebeizt und außen geschliffen.
Wird mit glatten Enden geliefert.

Hergestellt aus Edelstahl AISI 316L / EN 1.4404.

Standard DIN 11852.

Artikelnummer	Nominal Dim. mm.	Nom. dim. - DN	Nominal Dim. mm.	Länge L mm.	Materialdicke T mm.	Nettogewicht kg.	Basiseinheit
0101090150	19,0 x 13,0	15/ 10	19,0 x 13,0	11,0	1,50	0,020	Stck.
0101090200	23,0 x 19,0	20/ 15	23,0 x 19,0	7,0	1,50	0,010	Stck.
0101090201	23,0 x 13,0	20 / 10	23,0 x 13,0	18,0	1,50	0,020	Stck.
0101090250	29,0 x 19,0	25 / 15	29,0 x 19,0	18,0	1,50	0,020	Stck.
0101090251	29,0 x 13,0	25 / 10	29,0 x 13,0	28,0	1,50	0,010	Stck.
0101090252	29,0 x 23,0	25 / 20	29,0 x 23,0	11,0	1,50	0,010	Stck.
0101090350	35,0 x 23,0	32 / 20	35,0 x 23,0	22,0	1,50	0,020	Stck.
0101090351	35,0 x 29,0	32 / 25	35,0 x 29,0	11,2	1,50	0,020	Stck.
0101090400	41,0 x 29,0	40 / 25	41,0 x 29,0	22,0	1,50	0,030	Stck.
0101090403	41,0x 35,0	40 / 32	41,0x 35,0	11,0	1,50	0,040	Stck.
0101090501	53,0 x 35,0	50 / 32	53,0 x 35,0	33,0	1,50	0,080	Stck.
0101090502	52,0 x 40,0	50 / 40	52,0 x 40,0	22,0	1,50	0,090	Stck.
0101090650	70,0 x 53,0	65 / 50	70,0 x 53,0	29,0	2,00	0,090	Stck.
0101090651	70,0 x 40,0	65 / 40	70,0 x 40,0	51,0	2,00	0,110	Stck.
0101090652	70,0 x 35,0	65 / 32	70,0 x 35,0	64,0	2,0	0,110	Stck.
0101090800	85,0 x 41,0	85 / 40	85,0 x 41,0	78,0	2,00	0,160	Stck.
0101090801	85,0 x 52,0	80 / 50	85,0 x 52,0	56,0	2,00	0,120	Stck.
0101090802	85,0 x 70,0	80 / 65	85,0 x 70,0	27,0	2,00	0,090	Stck.
0101091000	104,0 x 52,0	100 / 50	104,0 x 52,0	90,0	2,00	0,290	Stck.
0101091001	100,0 x 70,0	100 / 65	100,0 x 70,0	61,0	2,00	0,230	Stck.
0101091005	104,0 x 85,0	100 / 80	104,0 x 85,0	34,0	2,00	0,170	Stck.
0101091250	129,0 x 70,0	125 / 65	129,0 x 70,0	106,0	2,00	0,280	Stck.
0101091251	129,0 x 104,0	125 / 80	129,0 x 104,0	79,0	2,00	0,410	Stck.
0101091252	129,0 x 84,0	125 / 100	129,0 x 84,0	45,0	2,00	0,550	Stck.
0101091501	154,0 x 129,0	150 / 80	154,0 x 129,0	210,0	2,00	1,670	Stck.
0101091502	154,0 x 104,0	150 / 100	154,0 x 104,0	90,0	2,00	0,450	Stck.
0101091503	154,0 x 84,0	150 / 125	154,0 x 84,0	45,0	2,00	0,400	Stck.
0101092002	204,0 - 129,0	200 / 125	204,0 - 129,0	225,0	2,00	2,900	Stck.
0101092003	204,0 - 154,0	200 / 150	204,0 - 154,0	300,0	2,00	1,600	Stck.

Falsche Produktdaten, Abweichungen bei Bildern/Videos sowie Preis- und Wechselkursänderungen vorbehalten.
